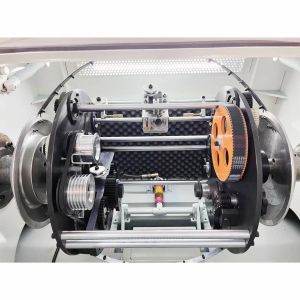

Φ500mm high speed bunching machine automatic high quality wire twisting equipment cable spool ABS pay off strander

Application

Apply for the bunching of seven pcs of bare wires,tinned wires,sliver jacket wires and enameled wires etc.

Specification

1.Inlet wire dia:Φ0.08-Φ0.45mm

2.Bunched wire size:Max 2.5mm²

3.Lay length: 4.24-46mm(adjustable according to customers requirements)

4.Direction:“S” or “Z”

5.Take up spool size:Φ500

6.Max.rotation speed:Max.2200RPM/minunt

7.Motor:5HP AC motor

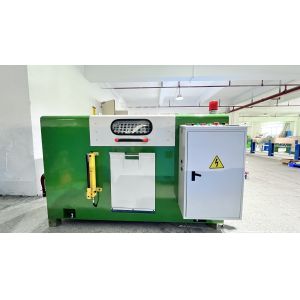

Φ500mm high speed bunching machine automatic high quality wire twisting equipment cable spool ABS pay off strander

8.Tension control:take up tension is controlled by magnetic powder clutch,the PLC follows up and regulates tension, constant tension

9.Brake mode:Electromagnetic brake

10.Operation type:opeation by push button

11.Bobbin shifting:Manual hydraulic lifting

12.Traversing methods:Rolling wire with ring drive units, row pitch and breadth are adjustable

13.Protection:Automatically brake/stop

1) Wire inside and outside is broken

2) The preset length is arrived

Touch screen method:Touch screen+ Siemens PLC+ Magnetic powder clutch, ensure constant tension from empty bobbin to full bobbin

Contact us for more details,pics and videos if you are interested in.

Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.

The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.

Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.
